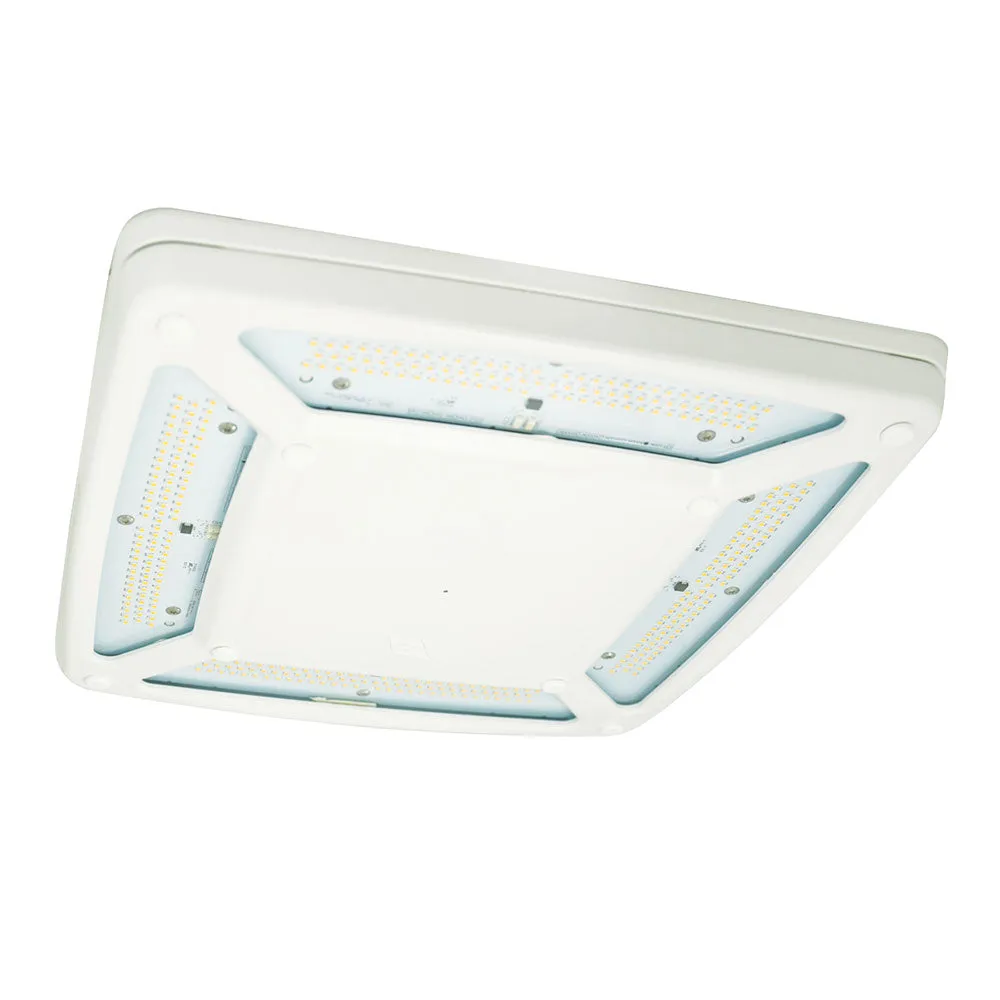

LSI Industries Scottsdale Vertex Canopy Lighting Fixture SCV

Name: LSI Industries Scottsdale Vertex Canopy Lighting Fixture SCV
SKU: 401847

The SCOTTSDALE® VERTEX™ is the most feature-rich gas canopy fixture on the market today. Its Symmetric Combination Forward Throw optic - make extra flood lights between the gas canopy and convenience store unnecessary saving the owner money without sacrificing performance. Vertex has a rugged low profile housing and is available in five lumen packages: 10K, 13K, 15K, 20K and 23K. The below canopy field serviceability, dimming capability and optional integral Bluetooth™ motion and photocell sensor make Vertex the ideal solution for gas canopies.

Ideal Applications: Petroleum station lighting / gasoline station lighting, convenience store lighting / C-Store lighting.

Features & Specifications

Rugged low-profile die-cast aluminum housing with below canopy access to optical chamber and driver compartment for serviceability.

IP66 rated luminaire.

Symmetrical distribution utilizes a clear tempered flat glass lens to uniformly illuminate the area under the canopy.

Combination Forward Throw distribution uses clear tempered flat glass and optical grade PMMA acrylic lens to create an industry leading unique distribution pattern to illuminate the area under the gas canopy and the area between the gas canopy and convenience store eliminating the need for extra floodlights.

Finished with LSIs DuraGrip® polyester powder coat process that withstands extreme weather changes without cracking or peeling.

Hazardous location rated for lighter than air fuel applications. Suitable for Class 1 Division 2 with all lumen packages and distributions only when properly installed per LSI installation instructions.

Operating temperature: -40°C to 50°C (-40°F to 122°F) when mounted to steel or aluminum surfaces for 10L, 13L, & 15L lumen packages. 45°C for 20L Lumen Package, and 35°C for 23L Lumen Package. If mounted to a non-metallic surface, reduce ambient by 5°C.

LSIs AirLink Blue wireless control system options reduce energy and maintenance costs while optimizing light quality 24/7.

Installs easily in a 12" or 16" gas canopy deck pan with 4 fasteners and an aluminum locking collar.

Retrofit panels for existing LSI Encore and Richmond luminaires plus a 2×2 Universal panel are available.

Meets Buy American Act requirements.
